Waffle Scarf: Stash Couture from Simple Knitting Stitches

Waffle Scarf showing garter stitch borders.

Waffle Scarf showing garter stitch borders.

College 2000 miles north requires a scarf.

Fall descends quickly in the far north.  Temperatures there required the scarf be completed immediately, so fine yarn and lace patterns were not considered.

As dictated by fashion at the college -the only options for color were black and grey, and the design needed to be subtle.

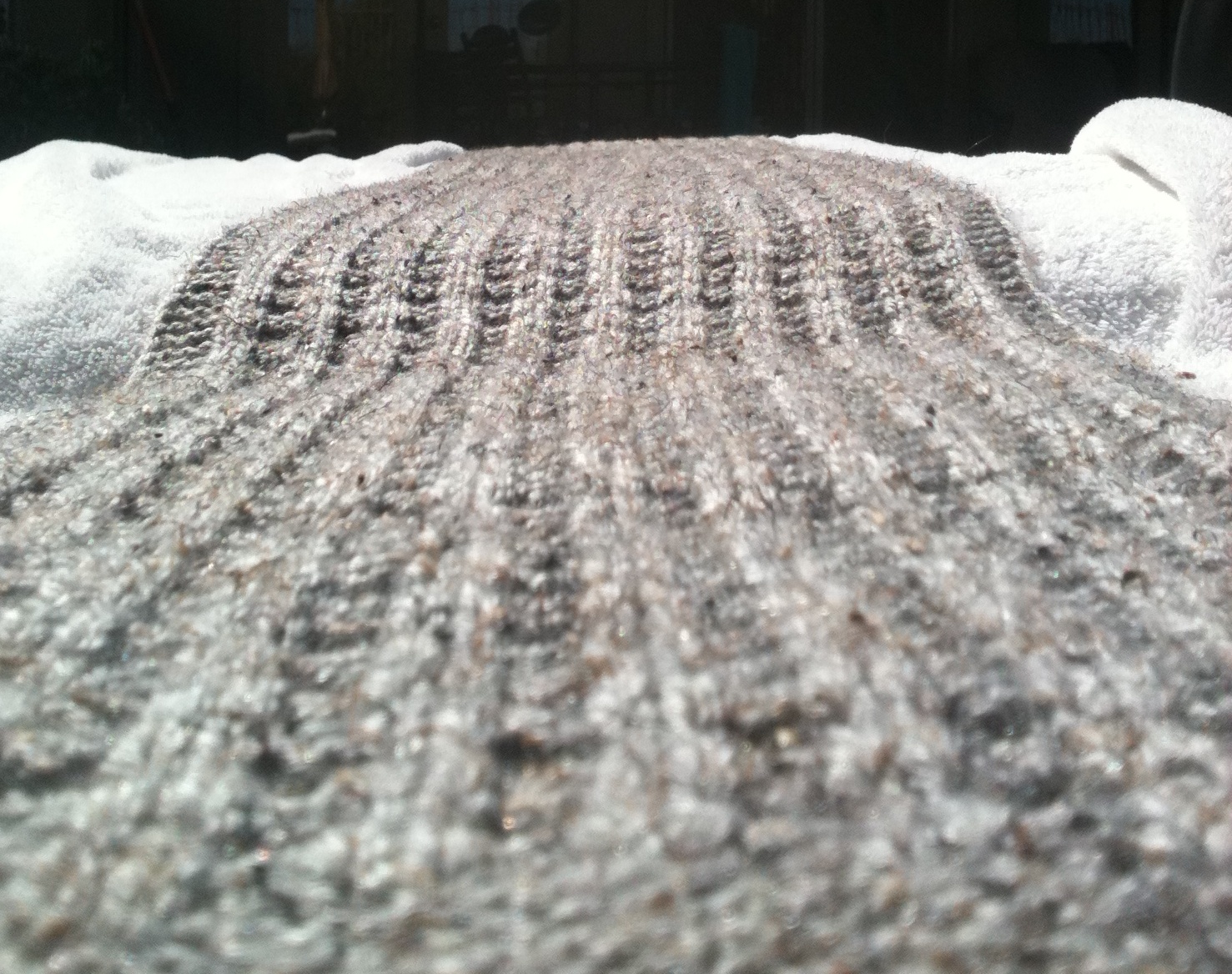

Blocking Scarf

Blocking Scarf

The Yarn Stash contained a few skeins of a worsted weight marled acrylic yarn. Not being an acrylic knitter, I cannot explain this yarn being in The Stash. But this Grey Marble Vanna’s Choice, met the (lack of color) color requirements – and became surprisingly soft after blocking.

The geometry of the Waffle Stitch worked up well in the marled yarn.  Knitting went fairly quickly as the only stitches are knit and purl.  Completing the scarf required just two weekends of football watching!

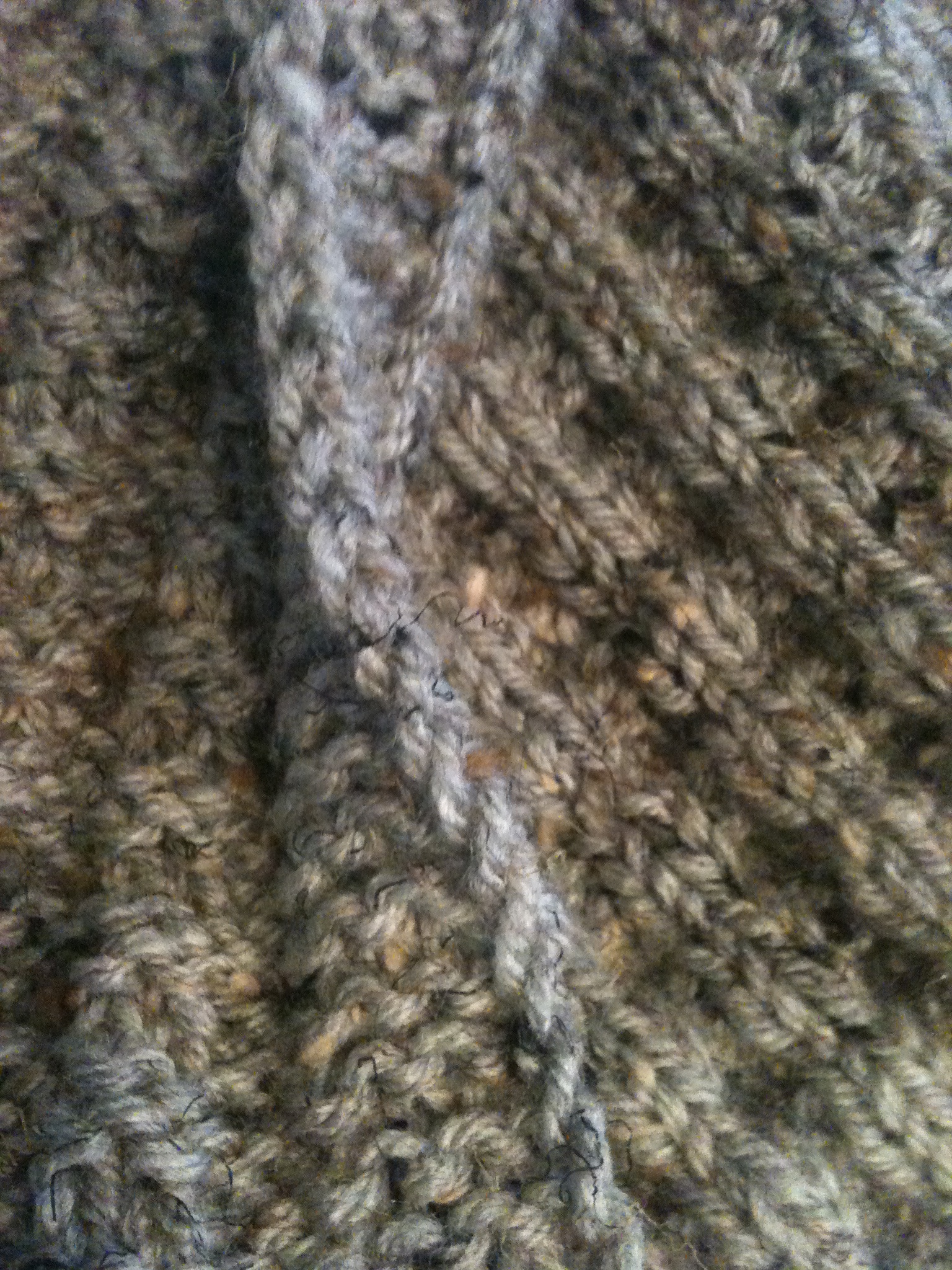

Back, Front and Border of Waffle Scarf

Waffle Scarf Details – border, Right side (right) and Wrong Side (Left)

I am sharing the pattern below, both in written and charted directions.  It is great for a first project – or a take-along project – or a watching football project!

The 10″ * 72″ Scarf is 50 stitches wide and requires approximately 450 yards of worsted weight yarn.  The 42-stitch waffle stitch section is framed by a garter stitch border.  The scarf starts and finishes with an 8 row garter stitch end border and throughout its length, each row starts and ends with a 4 stitch side garter stitch border.

Waffle Scarf

Waffle Scarf

The pattern:

Cast on 50 stitches using size 7 needles.

Garter Stitch Border:
Knit 8 rows.

Begin Pattern:
Row 1:  Knit all stitches
Row 2:  Knit 4, Purl to last 4 stitches, Knit 4.
Row 3:  Knit 4, *K2, P2*, Repeat between * to last 6 stitches, K6.
Row 4:  Knit 4, *P2, K2*, Repeat between * to last 6 stitches, P2, K4.

Wrong Side of Waffle Pattern really does look like waffles!

Wrong Side of Waffle Pattern really does look like waffles!

Knit until scarf is 72  inches long ending with Row 1.
Knit 8 rows for garter stitch border.
Bind off.

Being an engineer, I love using Charted Knitting Patterns.  Symbols are used to represent stitches.   The following narrative was created as speaking fluent Knitting Charts has its challenges.

In a chart, each square represents a stitch.

Charts are read across the rows from the lower right to the left. Rows also start at the bottom and are read upwards. This is the way right-handed individuals knit – but is completely opposite of the way we read books or pages – so does take some getting used to.

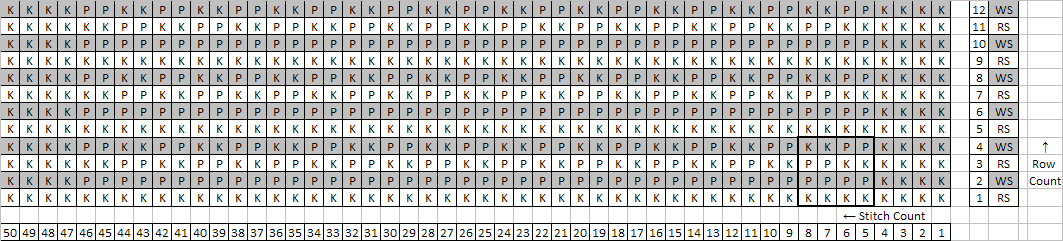

Waffle Section - fully charted

Waffle Section – fully charted

In the above chart, K = Knit and P = Purl.  The first 12 rows of the Waffle Pattern section of the scarf has been charted.  Wrong Side (WS) rows are shaded.

Chart of Repeating Pattern

Chart of Repeating Pattern

Somewhat overwhelming.  However, because the Waffle Stitch pattern is a 4 row, 4 stitch repeat, a much smaller chart can be used to illustrate the Waffle Stitch pattern.

Much less overwhelming – not to mention easier to read.

Same chart using symbols

Same chart using symbols

Charted patterns, however, do not use shaded rows or letters.  Symbols are used to represent the stitches – and symbols can vary by pattern.

The “Key” to the symbols is usually included just below the chart.

Same chart.  Knit stitches shown as blank squares.

Same chart. Knit stitches shown as blank squares.

Some charting is based upon “Knitting every stitch unless the chart indicates a different stitch.”  When this premise is used, the Key will note that all squares indicating knit stitches are left blank.

These simple charts show just the Waffle Stitch repeat.  However, charting the whole scarf must include the side garter stitch borders.

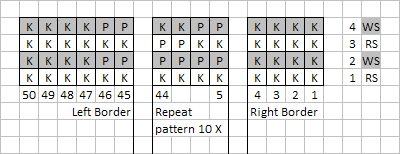

Charted Scarf Pattern including side garter stitch borders.

Charted Scarf Pattern including side garter stitch borders.

Charting the border stitches is typically shown in side charts.  Because of repeats, stitch counts may or may not be included.

Scarf Chart including side garter stitch borders - using symbols.

Scarf Chart including side garter stitch borders – using symbols.

Again, letters and shaded rows are not typical.  Symbols are used in pattern charting.

The charted pattern for the scarf would be written:

Cast on 50 stitches using size 7 needles.

Knit 8 rows.

Following Chart, knit scarf until it is approximately 72 inches long ending with Row 1.

Knit 8 rows.  Bind off.

Now, as a bilingual individual, translating “Knitting Charts” should no longer seem overwhelming…..

Grey Marled Scarf

Grey Marled Scarf
